Description

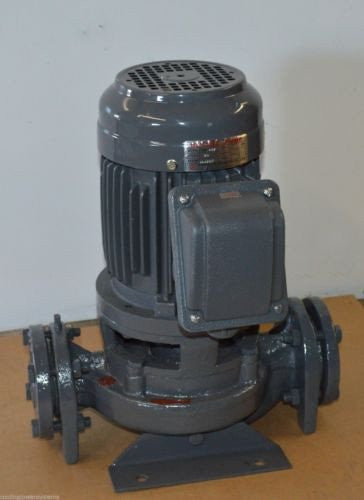

LSP-065 3HP 220/440V/3/60Hz (TEFC) Water Pump
Click here to download brochure
Click here to view performance curves
Model Details for LSP-065:
Suction & Discharge – 2 1/2″
Pipe size- 2 ½ in.
Motor Rating- 3 HP
Electrical Specs- 220/440V/3 TEFC
Propeller Material- Cast Bronze & Cast Iron
Temperature Limit- 176 degrees F (80 degrees Celsius)
Maximum Working Pressure- 14.2 psi (5kg/cm2)
Water Quality- Clean water
Atmosphere- Temperature to 130 degrees F (40 degrees Celsius) Humidity to 95%
Rotation- Clockwise when viewed from motor
Impeller Type- Volute
Motor Bearing- Ball
Features for Hi-Line In-Line Pump:
Multi- purpose Service for-
a. General Water Supply
b. Air Conditioning System
c. Industrial System
d. Re-circulation System
Most Compact Design:
Light weight, low noise, a same shaft could drive two pole/ four pole motor with pump
Durability and Easy Maintenance:
Stainless steel shaft with special mechanical seal are used and no lubrication needed.
Easy Installing and Piping- suction and discharge connections are in-line designed and same size to simply piping, any direction can be installed.
