Model T-2125

$16,438.00

SKU: model-t-2125 Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , Brand:

Description

***Please note: If purchased CTS, Inc. will need at least 2-4 weeks to build and prepare cooling tower for shipping and delivery.

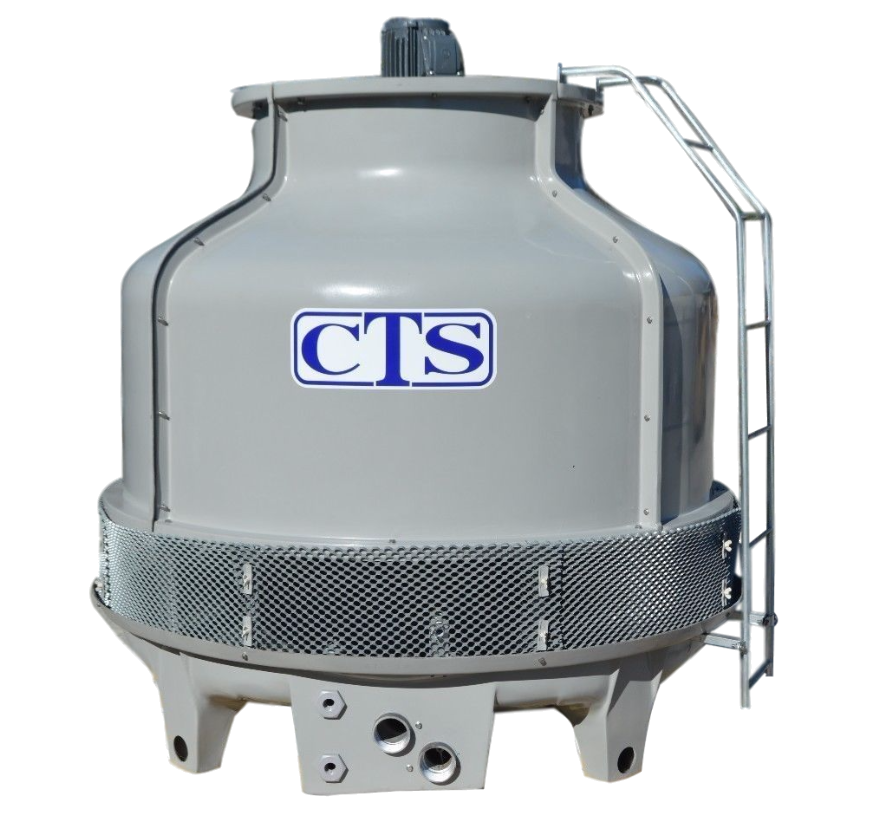

Model T-2125

125 Nominal Tons based on design of 95/85/75 @ 369GPM
Fan Motor 3 HP, 208-230/460V, 3PH, 60Hz
*Electrical hookups are inside the junction box located on fan motor
Cooling Capacity 1,875,000 BTU/hr
Air Volume 29,060 CFM
Water Inlet 5″
Water Outlet 5″
Tower Diameter 120 1/8″
Tower Height
 87″
Operating Weight 4,850 lbs.
Dry Weight 1,027 lbs.
Flange Type Round, 150# Cast Iron


Please note:  Field assembly will be required and will take approximately 15-20 man hours.  If you would like a quote for CTS personnel to assemble on your job site, please request from the sales office.

Additional information

Weight 2000.0 lbs
hidden

0
Motor Specifications

208V/230V/460V, 3PH, 60Hz
