Model T-2175

$24,811.00

SKU: model-t-2175 Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , Brand:

Description

Engineering Information

***Please note: If purchased CTS, Inc. will need at least 2-4 weeks to build and prepare cooling tower for shipping and delivery.

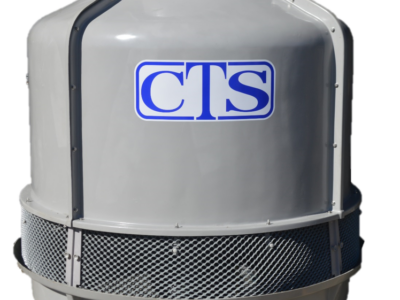

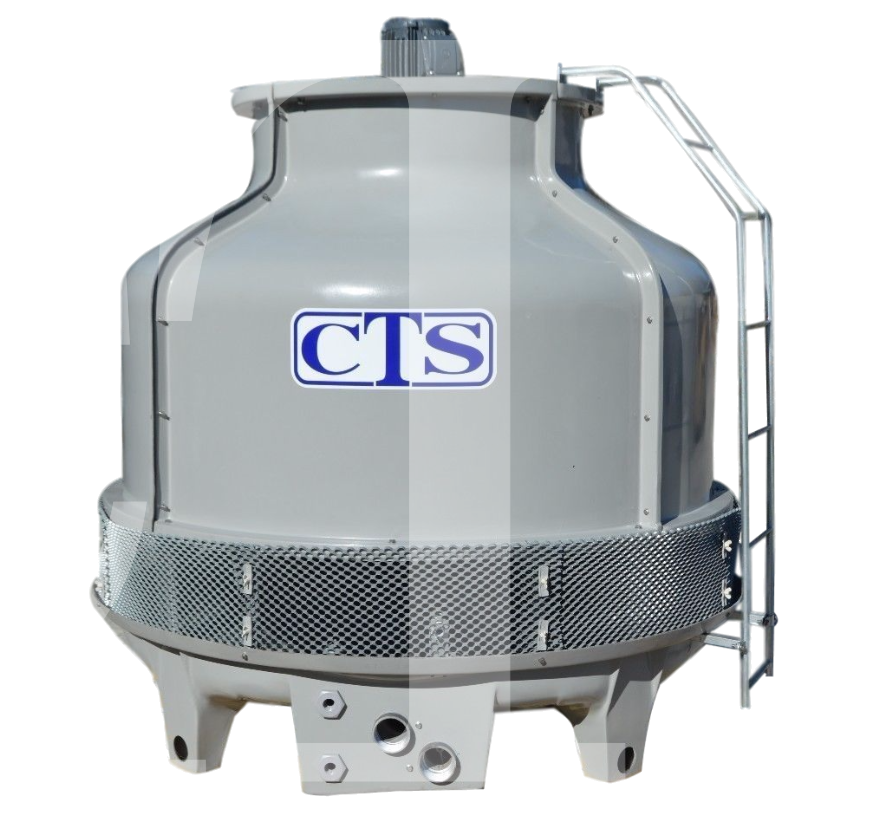

Model T-2175

175 Nominal Tons based on design of 95/85/75 @ 518 GPM
Fan Motor 5 HP, 208-230/460V, 3PH, 60Hz
*Electrical hookups are inside the junction box located on fan motor
Cooling Capacity 2,625,000 BTU/hr
Air Volume 40,250 CFM
Water Inlet 6″
Water Outlet 6″
Tower Diameter 130″
Tower Height
 97 7/8″
Operating Weight 6,375 lbs.
Dry Weight 1,571 lbs.
Flange Type Round, 150# Cast Iron


Please note:  Field assembly will be required and will take approximately 15-20 man hours.  If you would like a quote for CTS personnel to assemble on your job site, please request from the sales office.

Additional information

Weight 2800.0 lbs
hidden

0
Motor Specifications

208V/230V/460V, 3PH, 60Hz
config

{"use_shopify_meta_control":"yes","focusKeyword":"Cooling Tower","title_template_force":"no","robots_index":"yes","robots_follow":"yes","robots_noimageindex":"no","robots_noarchive":"no","robots_nosnippet":"no","robots_noodp":"no","google_notranslate":"no","google_unavailable_after":"no","google_unavailable_after_date":"","metaRedirect_enabled":"no","metaRedirect_url":"","sitemapRemove":"no"}
condition

new
custom_product

true
mpn

T-2175 Cooling Tower
